Description

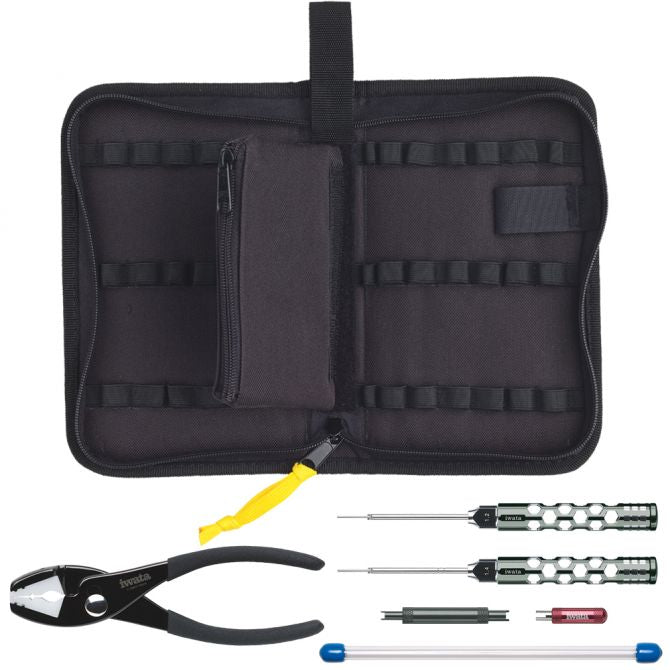

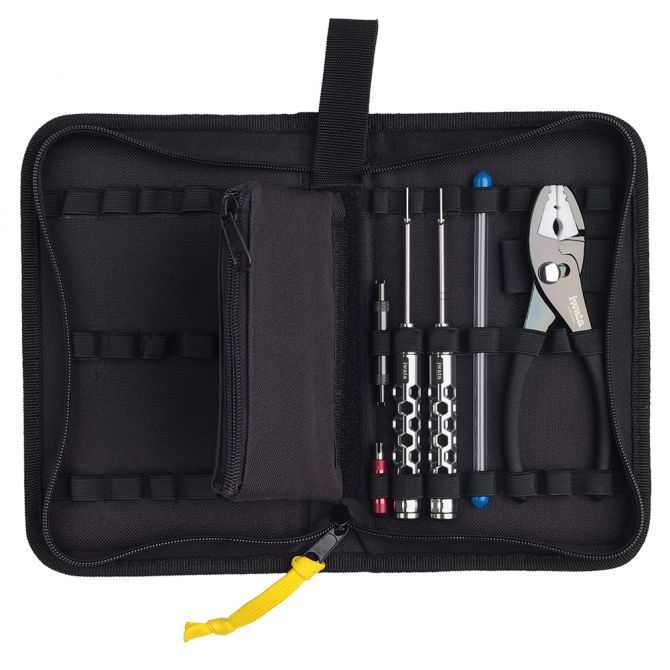

Iwata Professional Airbrush Maintenance Tools - CL500 - Iwata Professional Airbrush Maintenance Tools provide the ultimate airbrush maintenance experience to users. Included in the Iwata Professional Airbrush Maintenance Tools are; Iwata Soft Jaw Pliers, Iwata Air Valve Guide Wrench, Iwata Needle Packing Screw Drivers (1.2mm and 1.4mm) and the Iwata Nozzle Wrench
Iwata Needle Packing Screw Drivers (1.2 mm, 1.4 mm)
Easily remove, assemble and adjust the airbrush needle packing set (needle packing screw and packing) with the Iwata Needle Packing Screw Drivers. The needle packing set prevents paint from back-flowing into the main lever mechanism and is used to adjust the sliding tension of the needle.
To remove the needle packing set, choose the appropriate screw driver (see list). The screw driver pin size is the same diameter as the needle. With the airbrush disassembled, insert the screw driver into the back of the airbrush body until it connects with the needle packing screw as shown. Slowly turn the screw driver to engage the slots in the needle packing screw and unscrew. The packing set should be on the screw driver pin when removed or it may have fallen into the airbrush body.
To assemble, place the needle packing set onto the pin of the screw driver, engaging the slots. Slowly insert through the back of the airbrush body until the needle packing screw is seated and gently tighten. To adjust the needle tension, slide the pin slowly back and forth (to feel the tension) while tightening or loosening the screw.
1.2 mm Iwata Needle Packing Screw Driver for 1.2 mm diameter needles
Custom Micron Series — CM-B, CM-C, CM-SB, CM-C Plus
Hi-Line Series — HP-AH, HP-BH
High Performance Plus Series — HP-A Plus, HP-B Plus, HP-SB Plus
High Performance Series — HP-A, HP-B, HP-SB
Revolution Series — HP-AR, HP-BR, HP-TR2
Kustom Series — Micron CM
NEO for Iwata — CN, BCN
1.4 mm Iwata Needle Packing Screw Driver for 1.4 mm diameter needles
Hi-Line Series — HP-CH, HP-TH
High Performance Plus Series — HP-C Plus, HP-BC Plus, HP-BC1P
High Performance Series— HP-C, HP-BC, HP-BC2
Eclipse Series — HP-BS, HP-CS, HP-BCS, HP-SBS
Revolution Series — HP-CR, HP-BCR, HP-SAR, HP-TR1
Kustom Series — Eclipse CS, Hi-Line CH, Revolution TR, HP-TH
NEO for Iwata — TRN1, TRN2
Iwata Soft Jaw Pliers
Use these specialized pliers to assemble or disassemble your airbrush. The nylon jaw inserts grip firmly without damaging the chrome surface. Replacement inserts are available.
Iwata Air Valve Guide Wrench
Select the small or large diameter end of the Iwata Air Valve Guide Wrench for your specific airbrush model (see list). For air valve replacement, fit the wrench into the two slots of the air valve guide and unscrew. Remove and replace the air valve and reassemble. To customize the main lever spring tension, simply loosen or tighten the air valve guide.
Small diameter for
Custom Micron Series — CM-B, CM-C, CM-SB, CM-C Plus
Hi-Line Series — HP-AH, HP-BH, HP-CH, HP-TH
High Performance Plus Series — HP-A Plus, HP-B Plus, HP-C Plus, HP-BC Plus, HP-SB Plus, HP-BC1P
High Performance Series — HP-A, HP-B, HP-C, HP-BC, HP-BC2, HP-SB
Revolution Series — HP-TR1, HP-TR2
Kustom Series — Hi-Line CH, Micron CM,
Revolution TR, HP-TH
Large diameter for
Eclipse Series — HP-BS, HP-CS, HP-BCS, HP-SBS
Kustom Series — Eclipse CS
Revolution Series — HP-AR, HP-BR, HP-CR, HP-BCR, HP-SAR
Does not fit NEO for Iwata Series airbrushes.
Iwata Nozzle Wrench
The self-centering Iwata Nozzle Wrench is used to remove or tighten the nozzle onto the airbrush body without the risk of over-tightening. Does not fit the Iwata Eclipse Series airbrushes and the NEO for Iwata TRN2 side-feed trigger airbrush.
